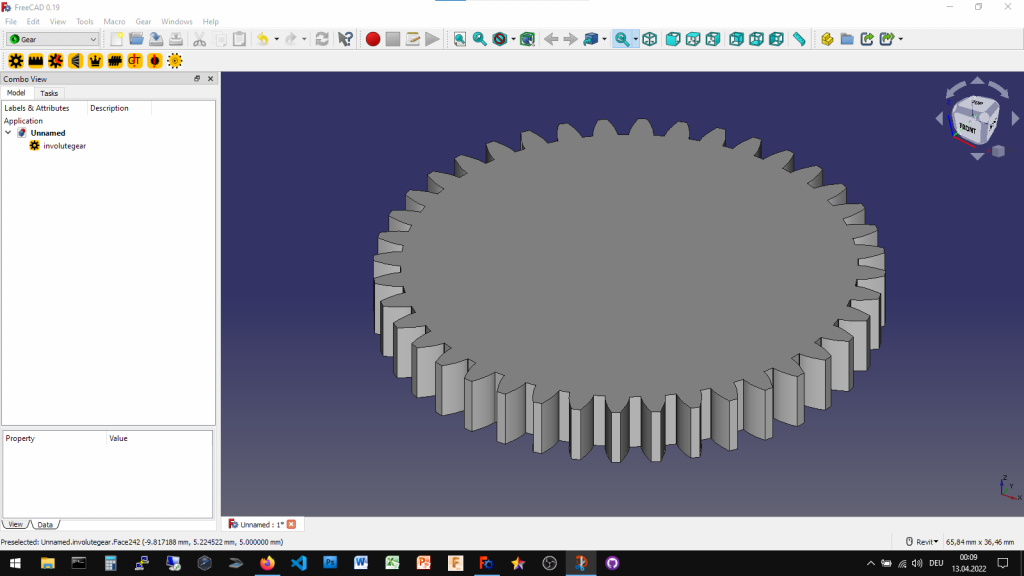

Taking a look at the modeled gear

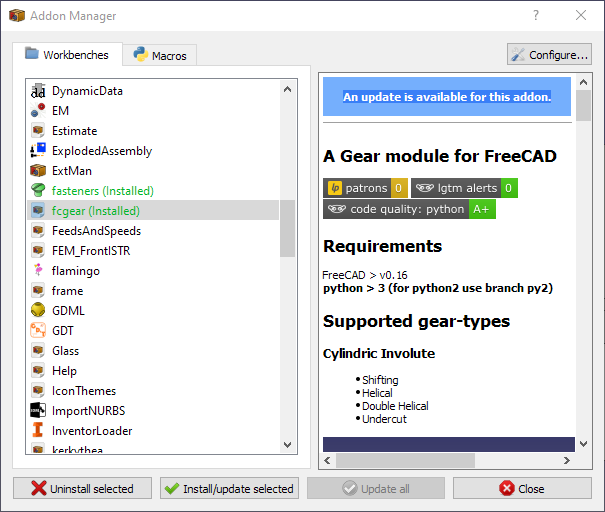

Installing the FCGear addon in FreeCAD through the addon manager

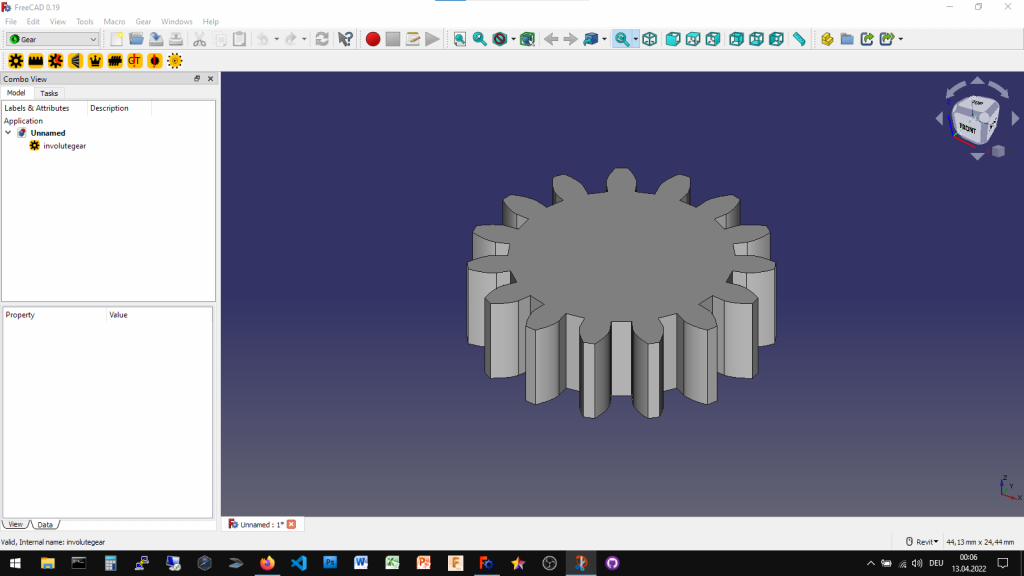

Creating a new gear in your FreeCAD document

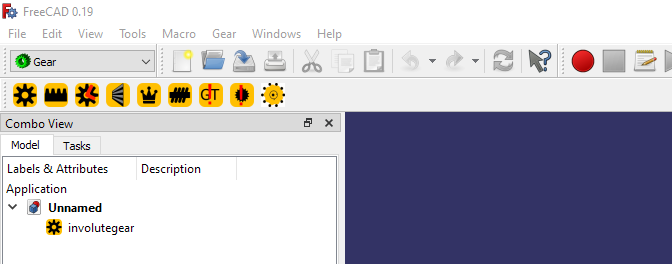

Switch to the Gear workbench and create an involute gear. The involute gear is the first icon. Like the one already created in the document tree.
Changing the number of teeth on the created gear

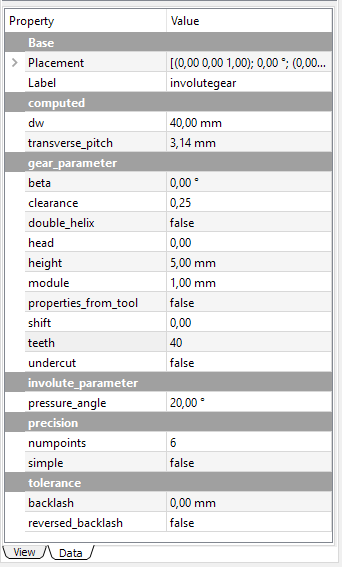

Select the created gear and change the number of teeth in the gear parameter seen under the Data tab.

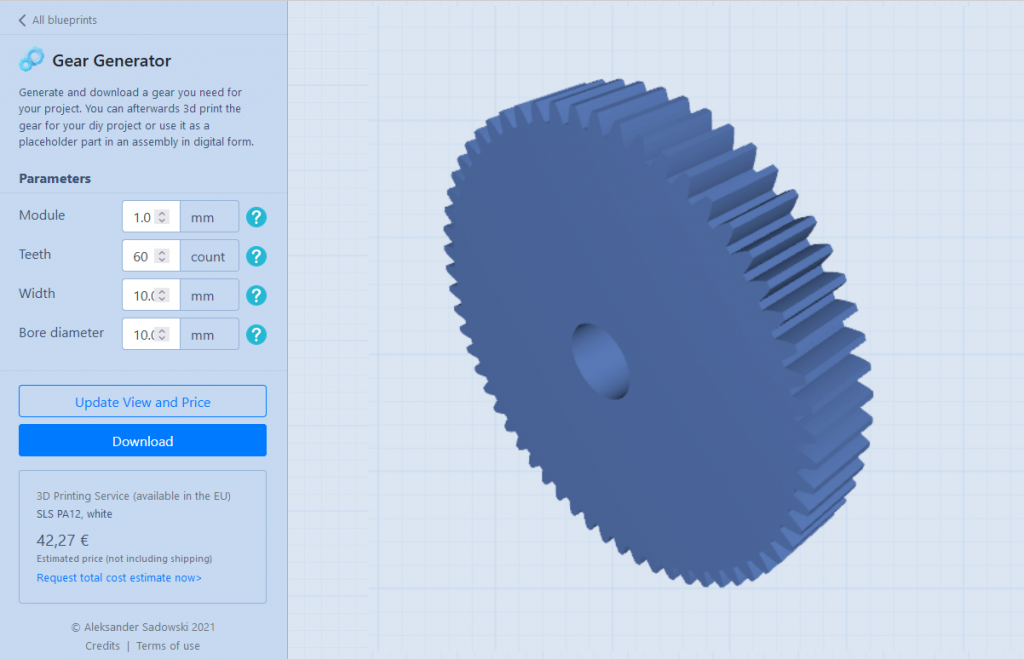

Generating gears online without FreeCAD
Check out the Online Gear Generator for desktop.
